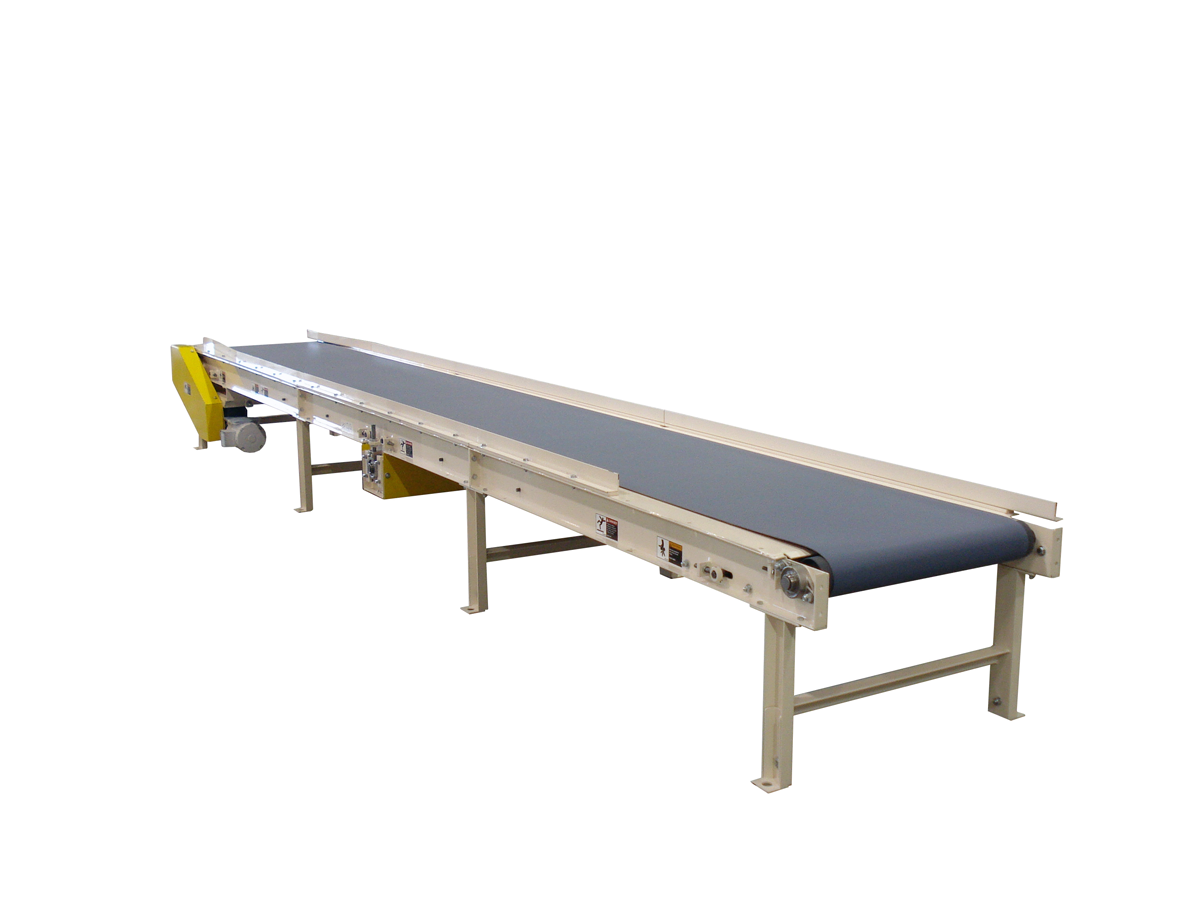

/Resources/a9d83de2-cfd5-4ae3-abd1-444b365a00b4/Slider-Bed-2.png

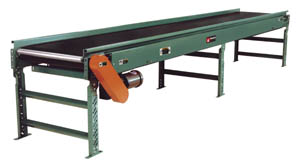

/Resources/405bc05b-4a98-4b62-87e6-cbbb62dd54ba/slider bed belt conveyor with sides.jpg

/Resources/6f40e6ee-4747-4e46-8ced-15b9a9be5d45/Med Duty 2 Stage Slider Bed Conveyor.jpg

/Resources/a57a2595-3fcd-4568-a877-12595b05a223/conveyor - 2 tier scrap conveyor.jpg

Product Overview

Slider Belt Conveyor

Slider Bed Belt conveyors provide a versatile means of handling products of various sizes and shapes. PRS manufactures only Medium, Heavy and Extra Heavy Duty Belt conveyors with formed and welded construction. The welded construction and slider bed design provide increased capacity with lower power requirements. Belt conveyors are useful for operations such as assembling, sorting, inspecting or transporting and are available horizontal or inclined.

GET FINANCING

Specifications

PRS Conveyor Tech slider bed units are available in overall widths from 12” to 60”. Options include trough sides, variable speed drives, and cleated belts to name a few.

Additional Information

Our LT Model is designed to handle empty cardboard boxes and paper.

Bed - 14 ga. formed steel slider bed bolted between two 7-1/2" deep x 12 ga. formed steel side channels with 6" high guards.
Belt Widths: 11-1/2", 17-1/2", 23-1/2", 29-1/2", 35-1/2", 41-1/2", 47-1/2" & 53-1/2"
Motor - 1 HP standard. 2 HP max. Adjustable Floor Supports Available
Capacity - Maximum load per linear ft. of conveyor 10 lbs., not to
exceed rated capacities

Our TB Model with built-in guard rails is ideal for overhead conveying applications. It easily conveys boxes, cartons, cases, bags, etc. as well as loose parts.

Bed - 4" deep x 12 ga. formed with 2-1/2" high guards powder painted
Belt Widths: 6", 8", 10", 12", 14", 16", 18", 20", 24", & 30"
End Drive (standard)
Motor - 1/2 HP standard - 2 HP max.
Adjustable Floor Supports Available
Capacity - Maximum load per linear ft. of conveyor; 75 lbs., not to exceed rated capacities
