Product Overview

Model TX Pallet Stackers

The model TX pallet stackers feature fully automatic pallet stacking - in a fixed 48”x 40” pallet size machine design as standard. Model TX machines can also be custom built per order for either Euro pallet size - 800 mm x 1,200 mm, or 1,000 x 1,200 mm.

Model TX stackers have a unique pallet holder clip that stacks pallets and holds them from the bottom of the pallet to provide a perfect fit for pallet sortation and repair lines. These machines offer a smaller footprint than our larger adjustable models yet have all of the features that make PRS stackers popular.

GET FINANCING

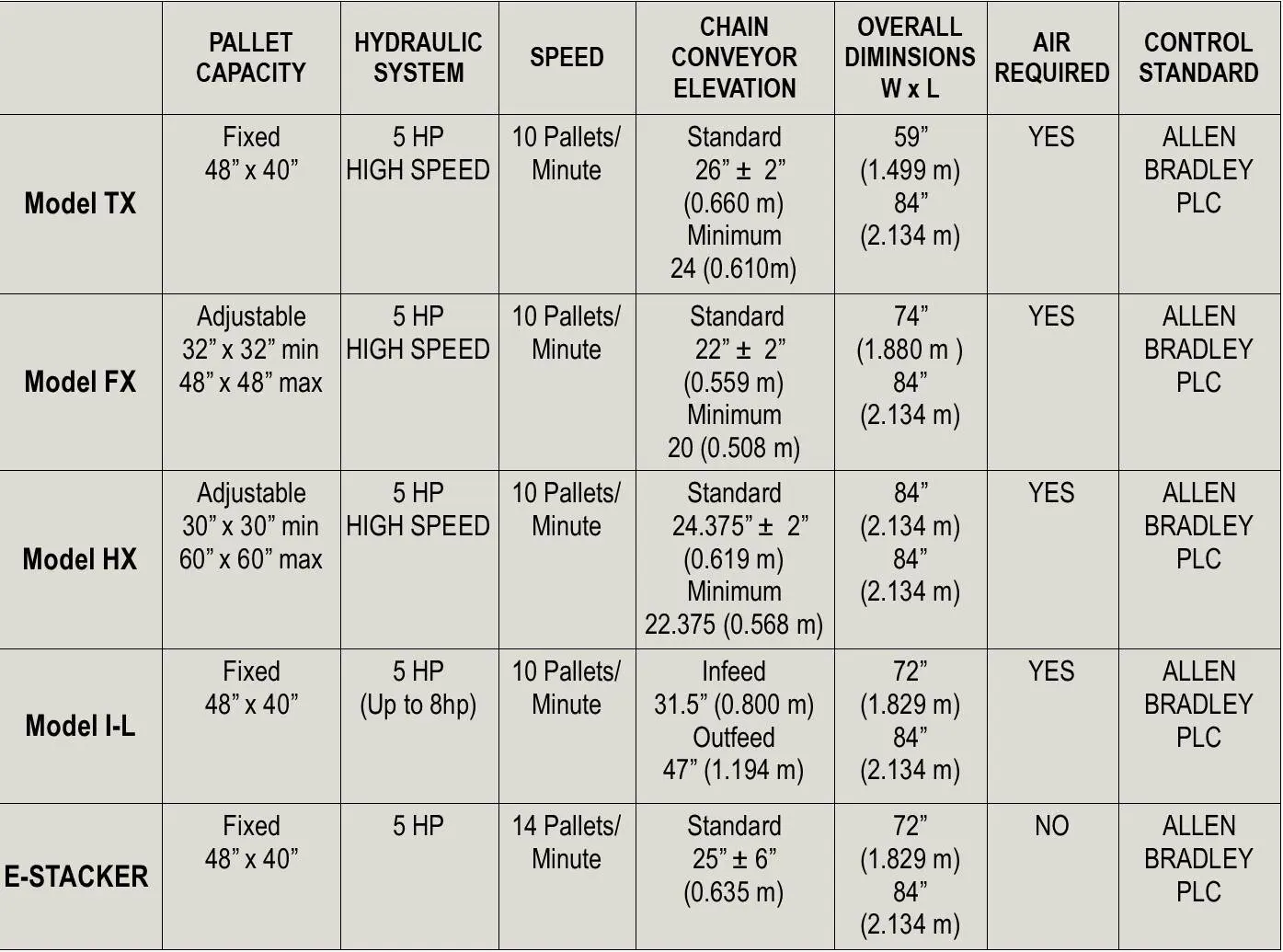

Specifications

Standard Features:

High Speed 5 HP Hydraulic System
48" x 40" Fixed Pallet Capacity (1.21 x 1.01 m)
10 Pallets/Minute
Fully automatic operation
Live infeed chains
Programmable electronic counters for stack quantity
Automatic stack eject
Heavy duty scissor lifts stacking mechanisms

Optional Features:

PLC control
Touch panel operator interface
Remote control consoles
Sheet steel stack chamber walls

Additional Information

PDF Downloads

TX STACKER CAD DRAWING

STACKERS FLYER
