Product Overview

Electric Pallet Dispenser- Model ePD

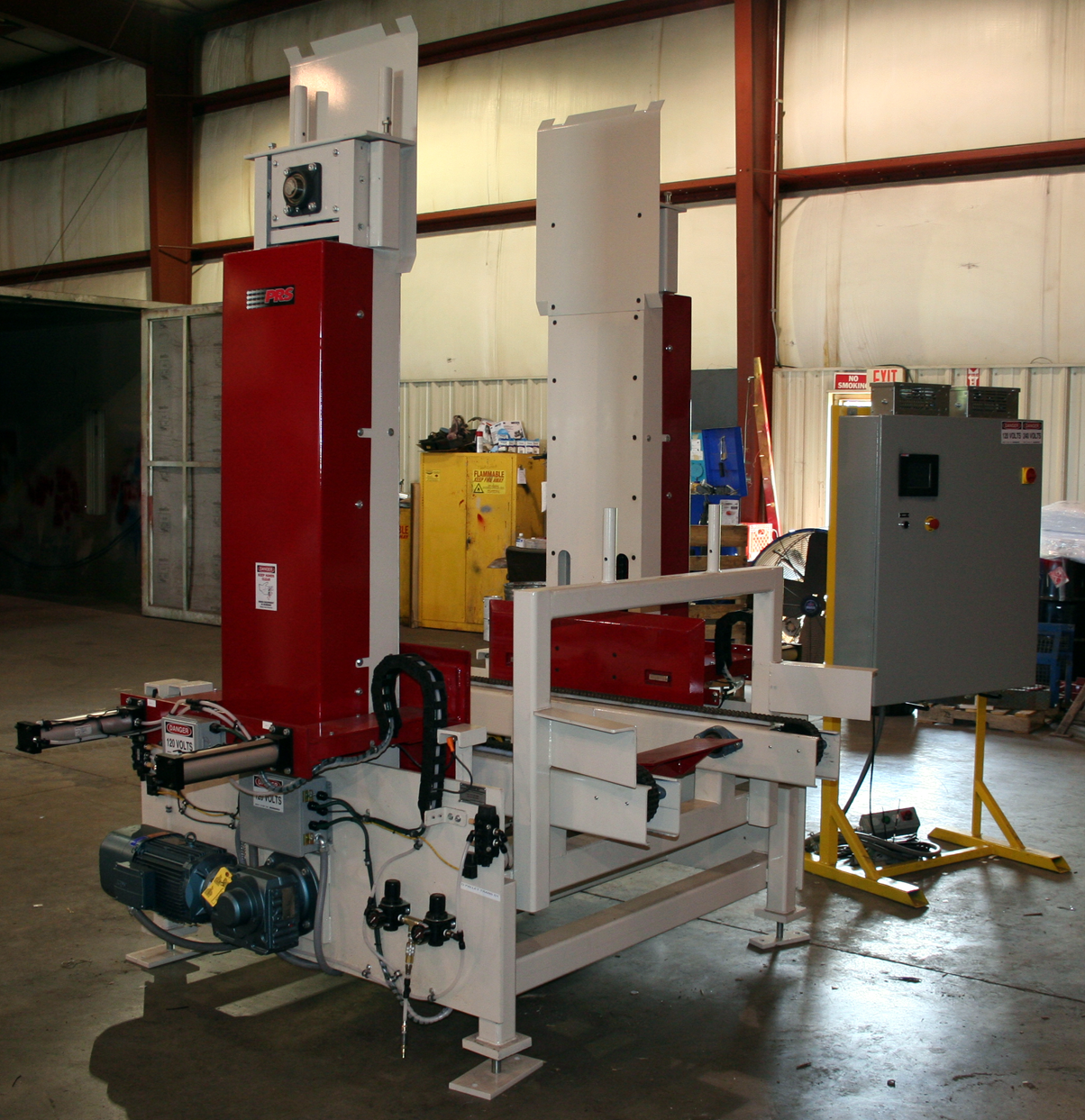

The eDispenser is a fully automatic pallet dispenser that is powered by electric drives rather than hydraulics. The result is a fast, smooth, pallet dispenser that also has the capacity to stack pallets!

This machine can serve as a pallet dispenser, a pallet stacker, or both in applications where a production buffer for pallets is required. As a buffer, the PRS e Dispenser can stack pallets and dispense them as needed.

PRS electric pallet dispensers feature SEW-Eurodrive systems that power a central drive shaft to operate a dual sided lift mechanism. The pallet lifting toggles are simple spring loaded devices that engage the pallet in four contact points. The integrated conveyor is dual chain, 2 strand design which is also powered by SEW-Eurodrive motor/reducer units. The result is a bullet-proof, smooth, quiet, and fast pallet dispensing solution that is built for years of dependable service.

GET FINANCING

Specifications

Options:

Machines compatible with Euro pallets available upon request

if you need your ePD to adjust for different size pallets just contact your sales rep at PRS to discuss your exact requirements – we’ve done it before and we could do it for your application.

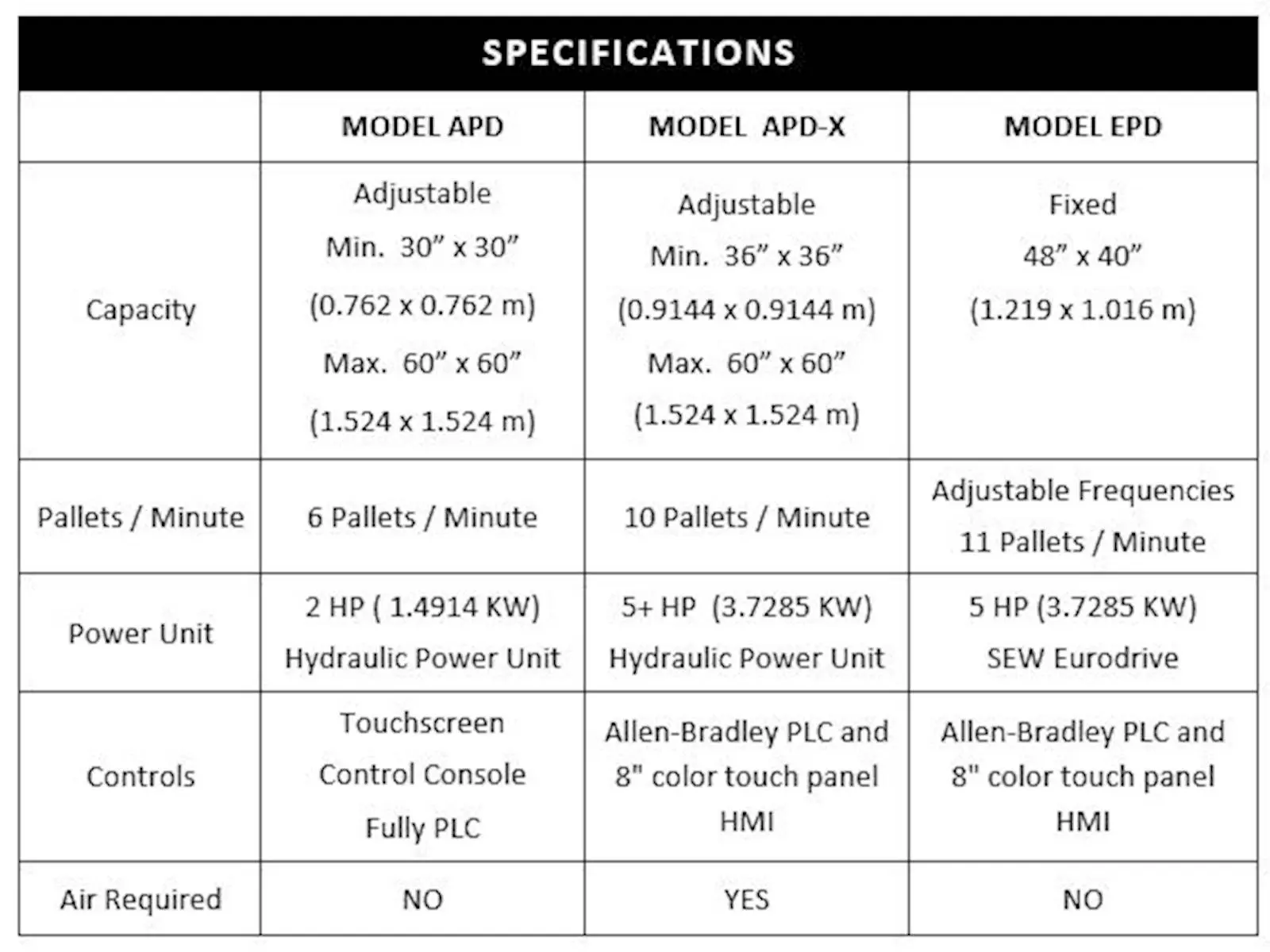

Specifications:

Live infeed/outfeed conveyor chains driven by 1.5 hp SEW Eurodrive
41" standard opening - 49" opening available upon request

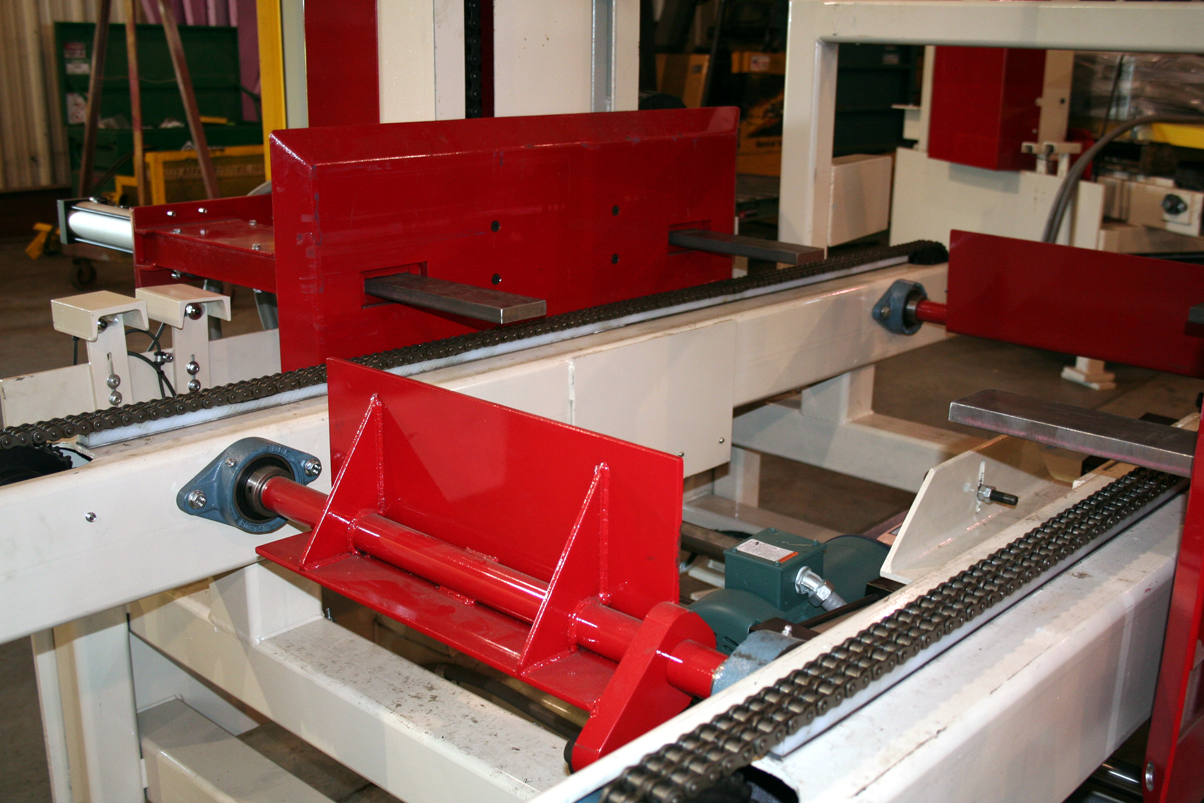

Lift mechanism uses 4 pneumatic cylinders/toggles to hold pallets in stack
Yaskawa variable frequency drives control speed for both the chain conveyor and lift mechanism
Lift mechanism is powered by 5 hp SEW Eurodrive with brake system and uses 1.625" TGP shaft
Lift mechanism utilizes an adjustable counter weight system to alieviate the load on the drive system
Lift mechanism utilizes # 80 roller chain
Linear motion of lift system utilizes Heavi-Rail track and bearing system
Cutler Hammer reflective photo eye switches sense pallet location - proximity switches sense lift position
Pneumatic cylinder powers roll type pallet gate - includes filter regulator lubricator with gauge
All components are mounted on one side of the machine for simple operation and maintenance

Additional Information

PDF Downloads

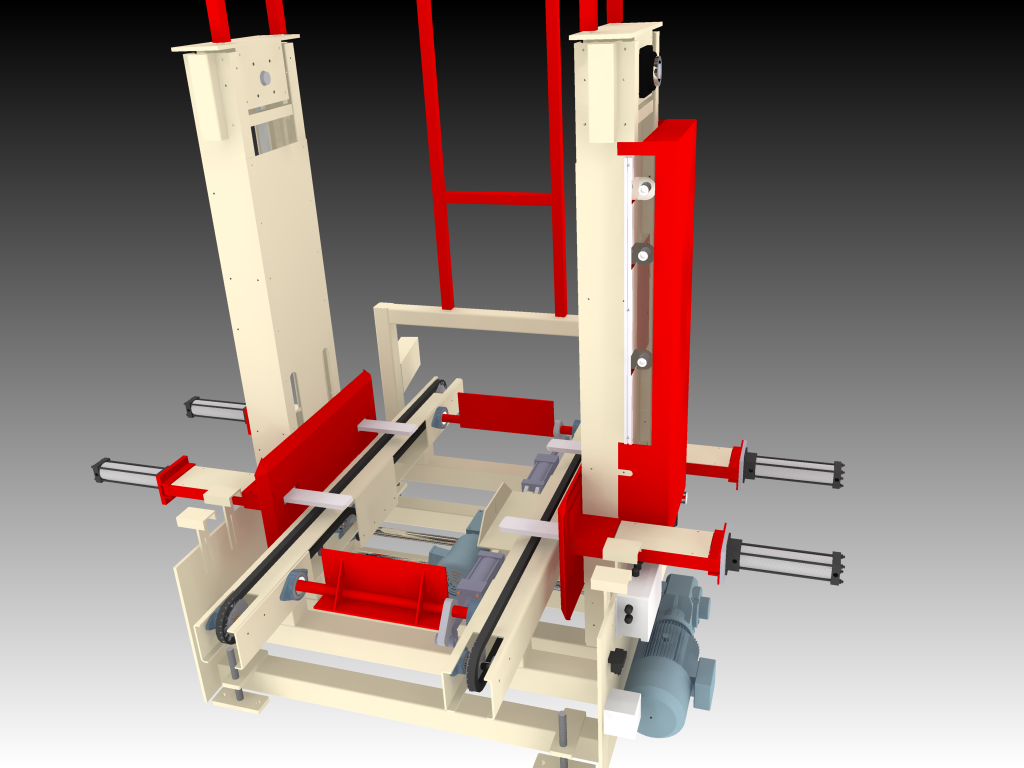

eDispenser CAD Drawing
